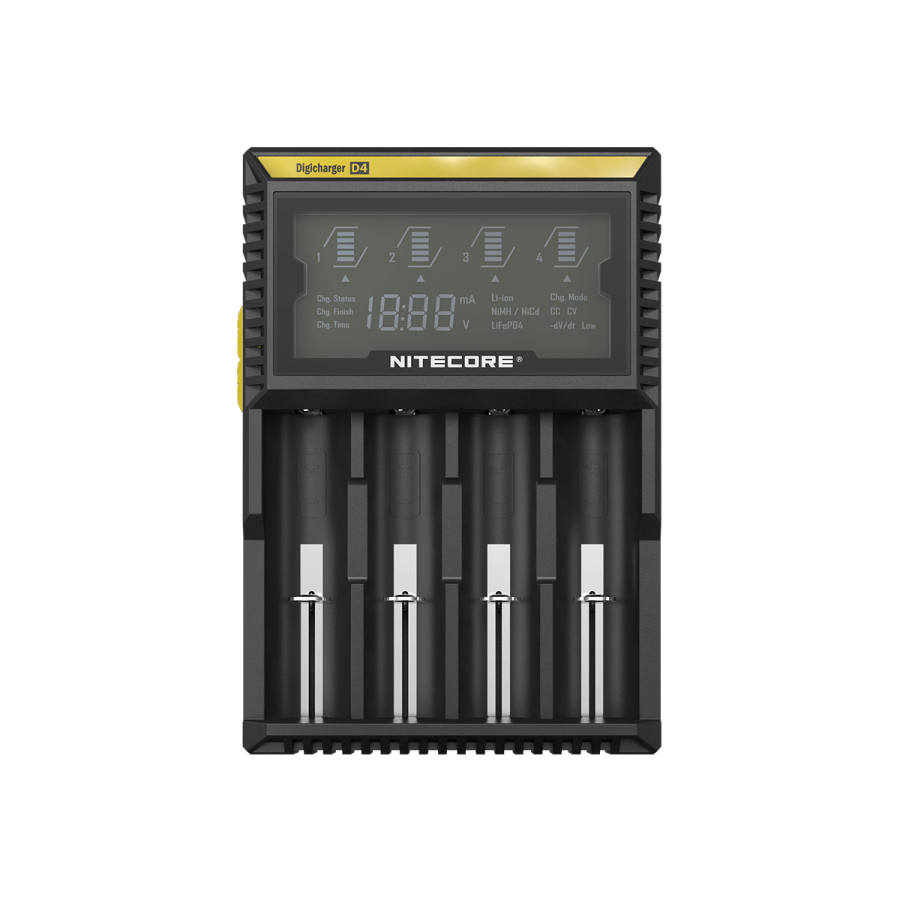

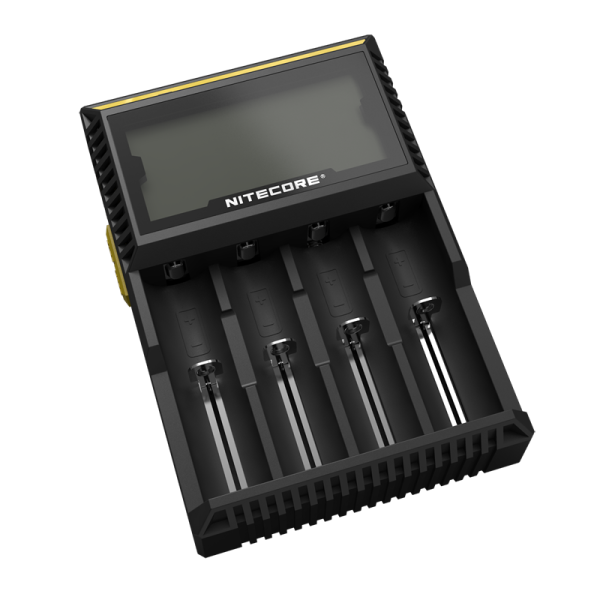

D4

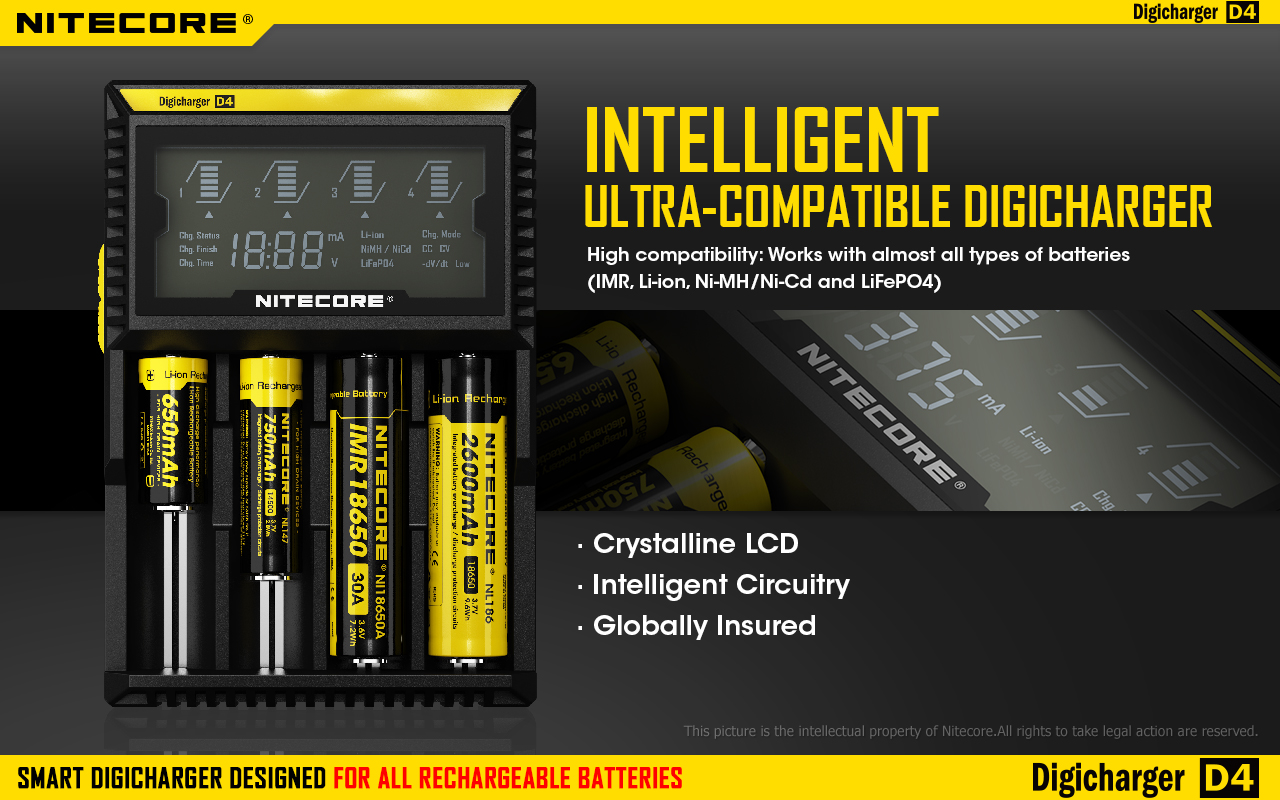

Intelligent Ultra-Compatible Digicharger
A highly compatible automatic charger built with crystalline LCD display,fully compatible with a multitude of battery types,and safety.

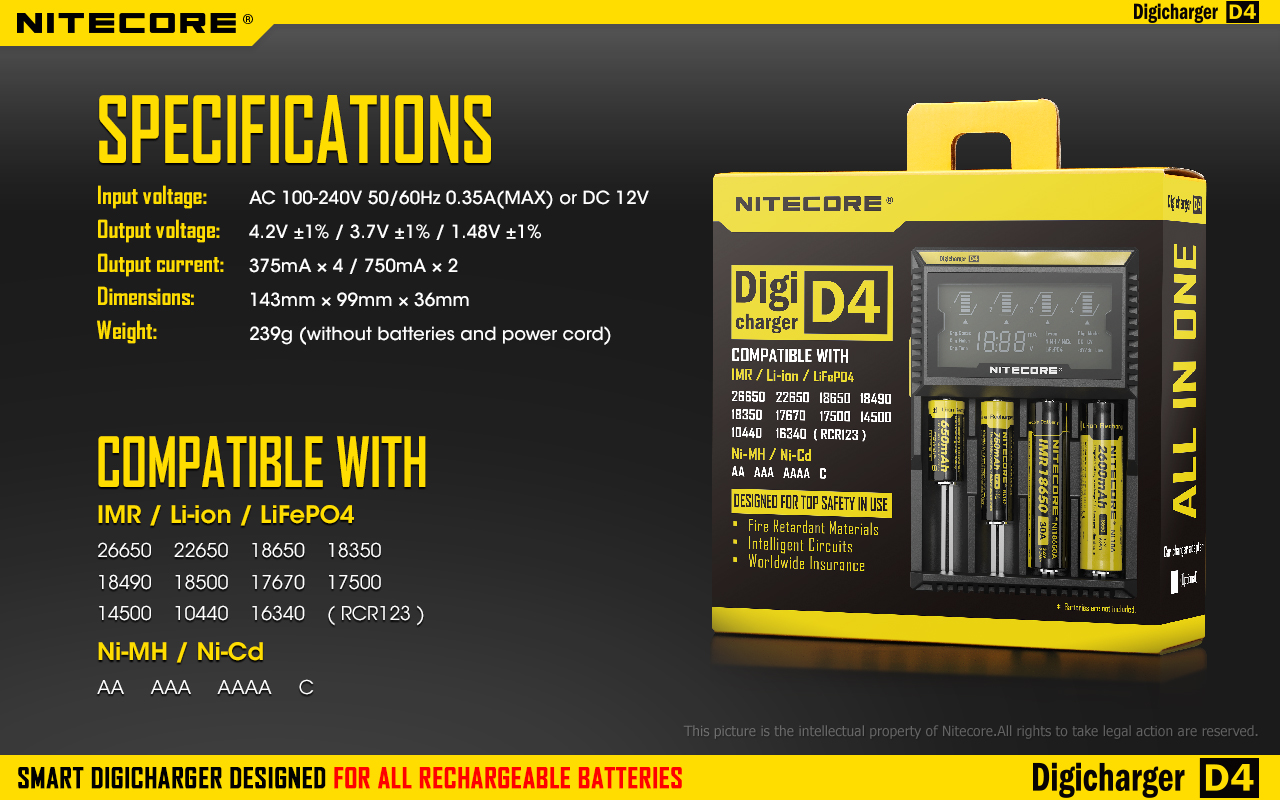

PRODUCT SPEC

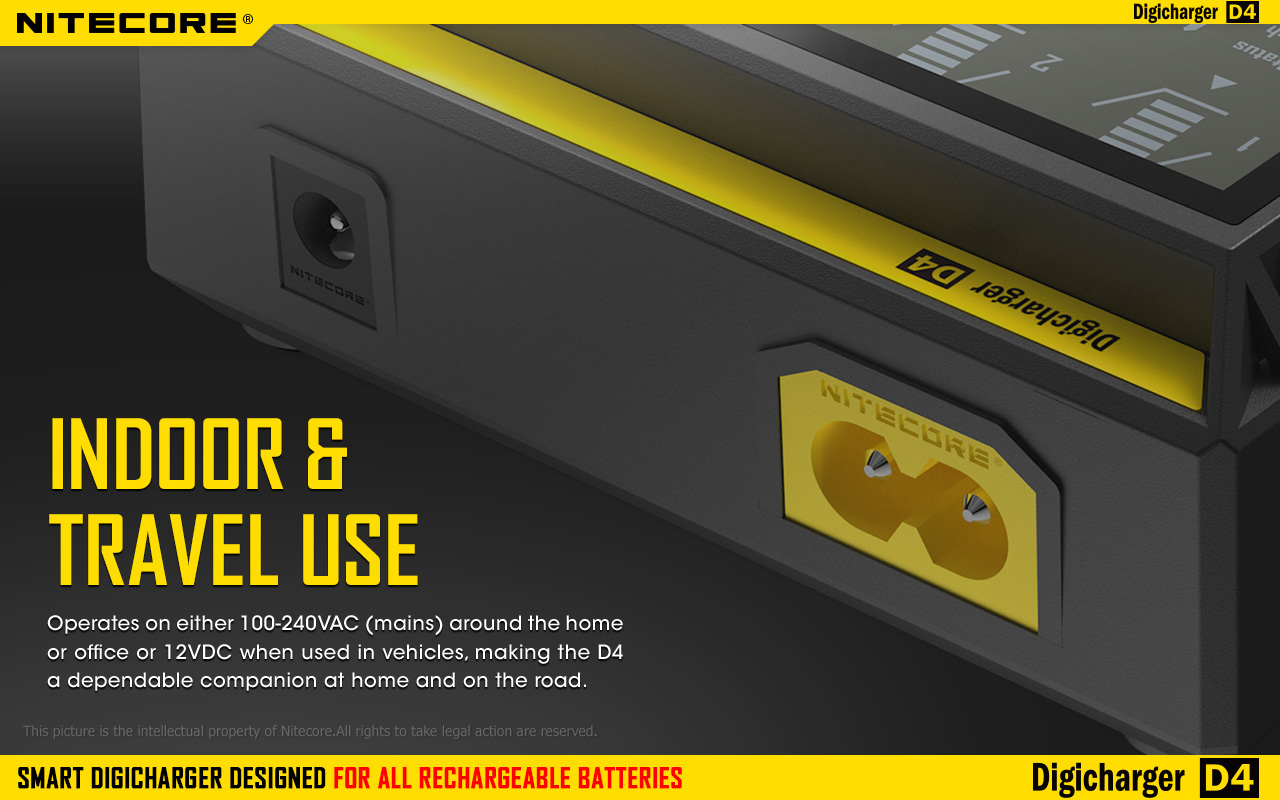

Input
AC 100-240V 50/60Hz 0.35A(MAX)
DC 12V 1A
Output Voltage
4.2V ±1% / 3.7V ±1% / 1.48V ±1%
Output Current
375mA × 4 / 750mA × 2
Compatible with
Li-ion / IMR / LiFePO4: 26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440
Ni-MH / Ni-Cd: AA, AAA, AAAA, C
Dimensions
5.63" x 3.90" x 1.42"
(143mm x 99mm x 36mm)
Weight
8.43 oz (239g)
(without batteries and power cord)
FEATURES
- Capable of charging 4 batteries simultaneously
- Each of the four battery slots monitors and charges independently

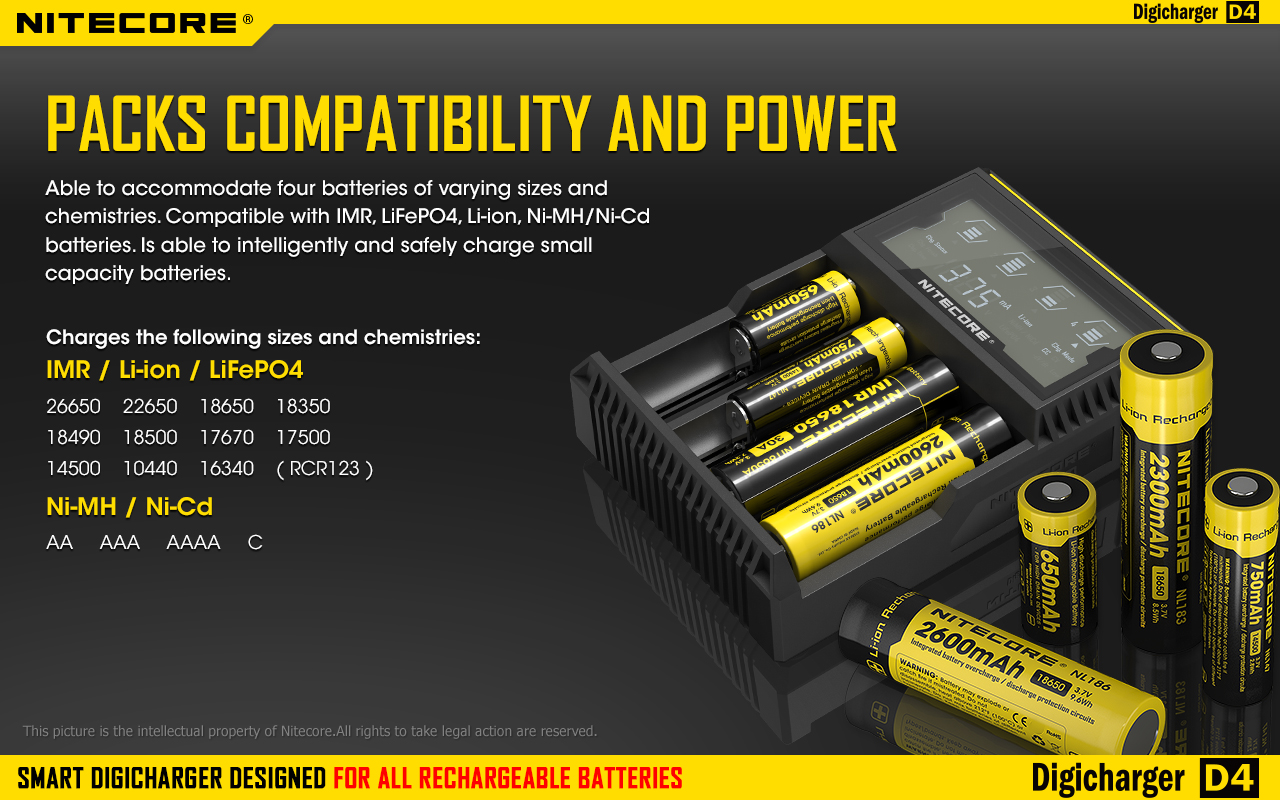

- Compatible with and identifies Li-ion (26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440), Ni-MH and Ni-Cd (AA, AAA, AAAA, C) rechargeable batteries
- Optimized charging design for IMR batteries

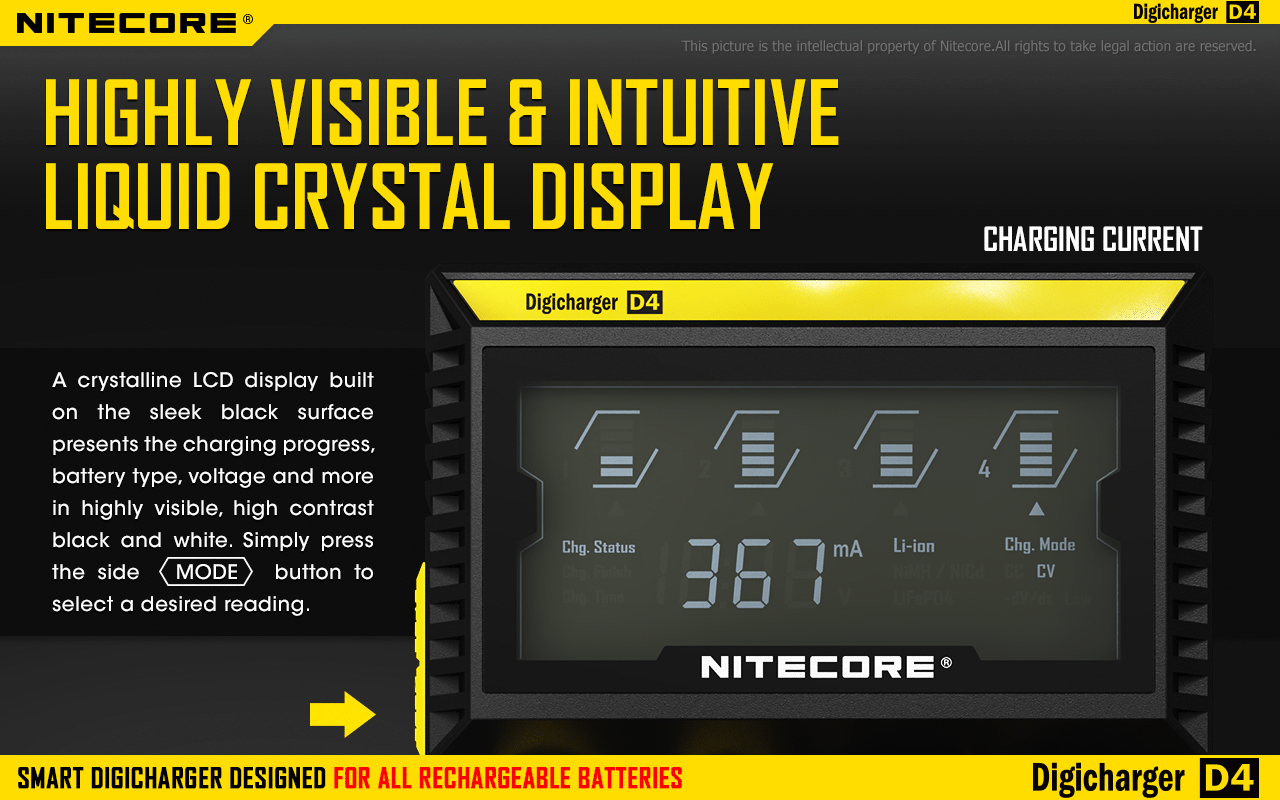

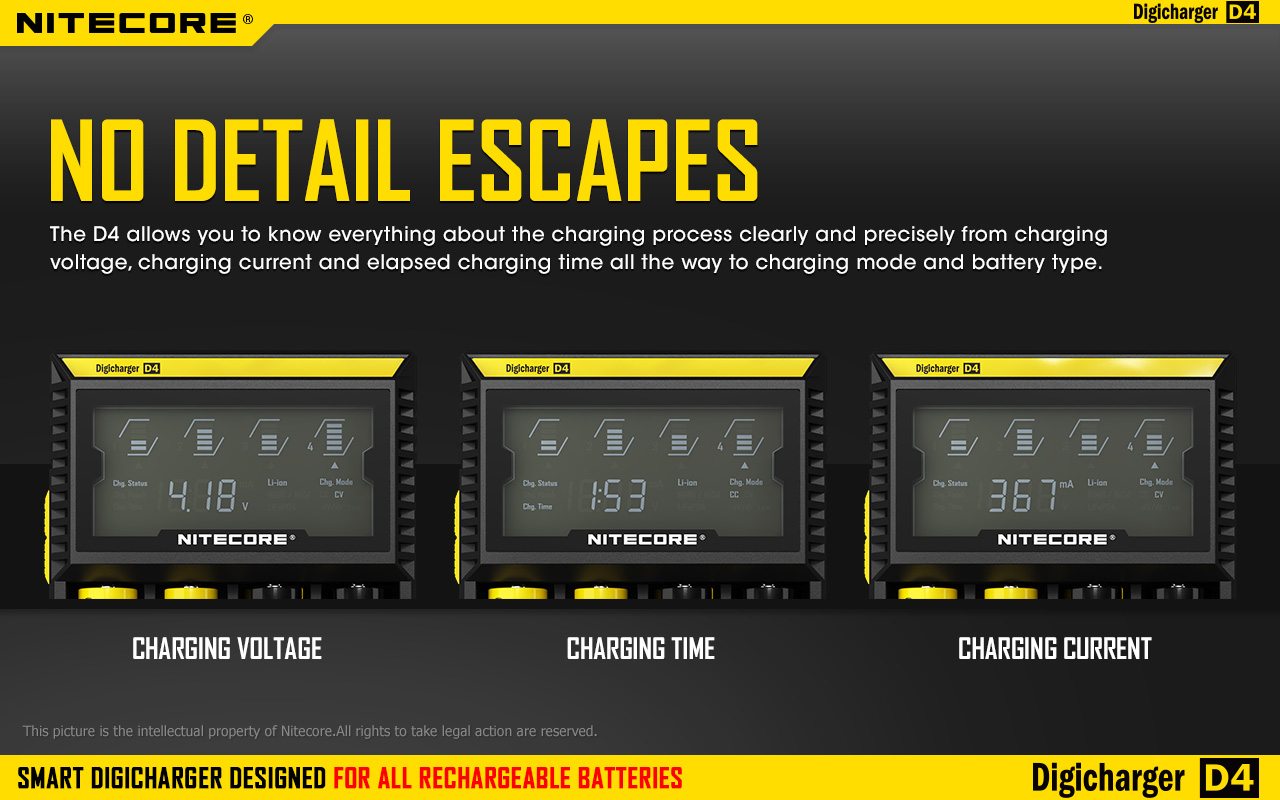

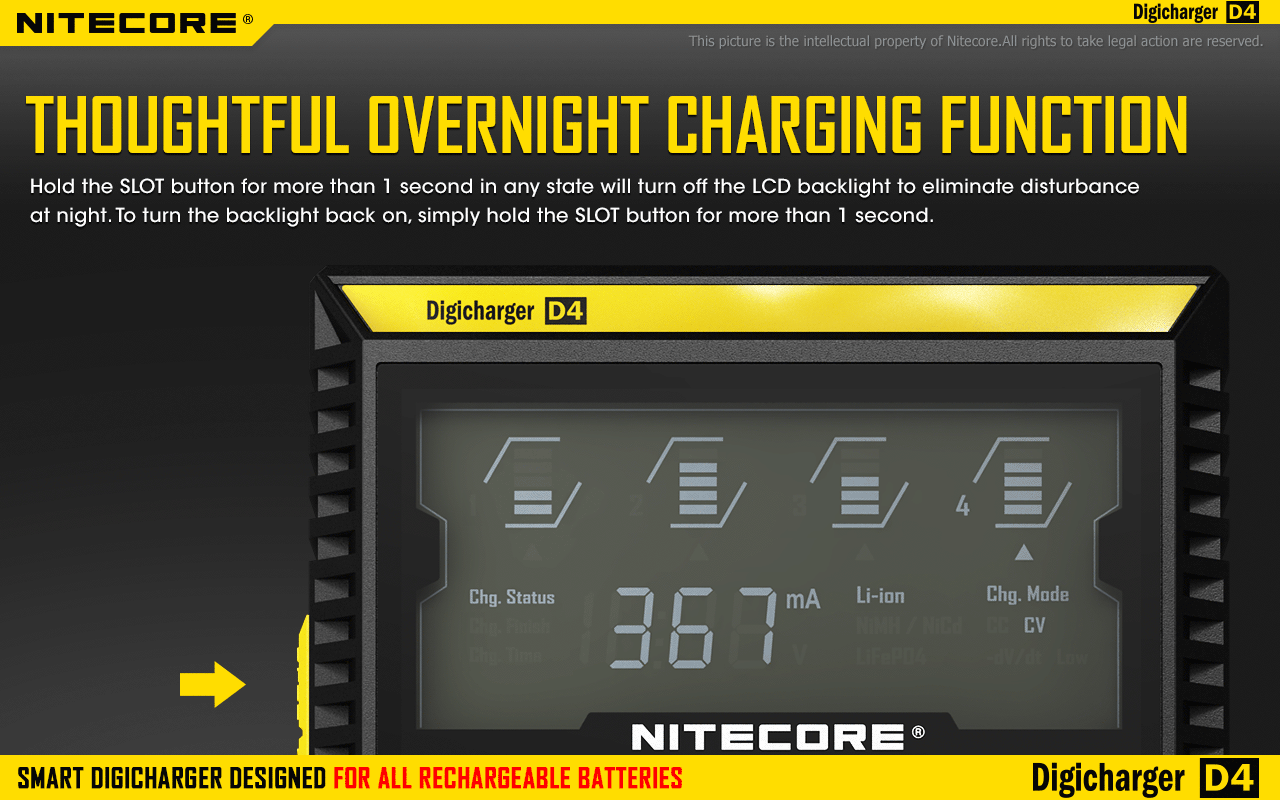

- Integrated LCD panel clearly displays charging parameters and progress
- Two conveniently located side buttons allow easy selection of specific battery types and charging parameters

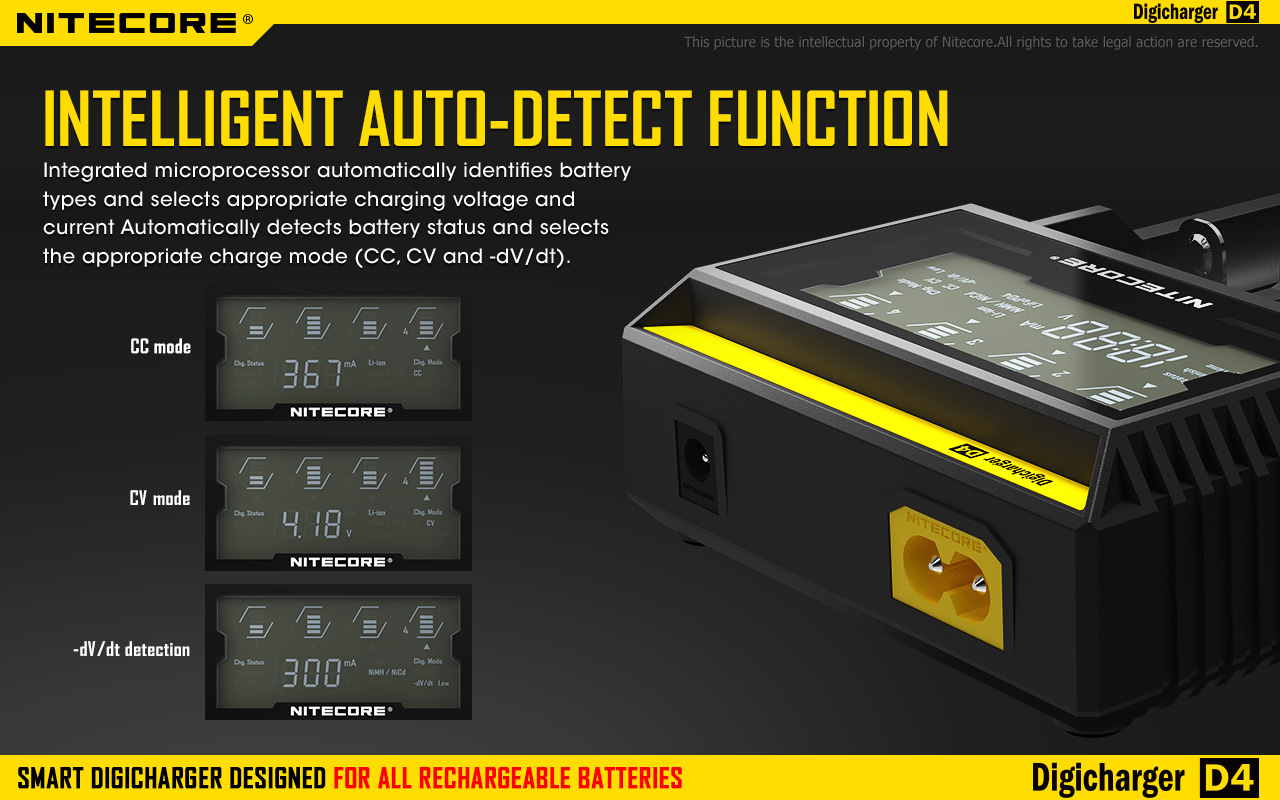

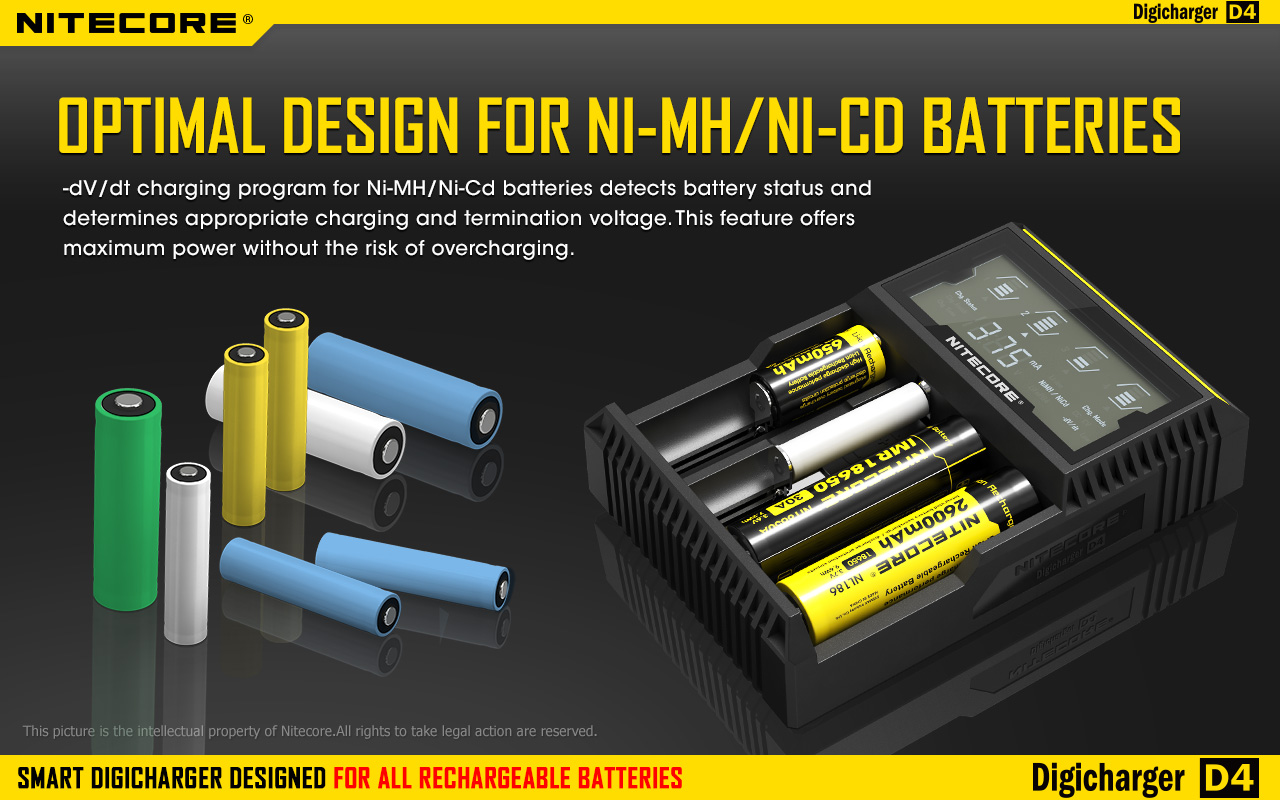

- Intelligent circuitry detects the battery type and status before entering automatic charge mode (CC, CV, dV/dt)

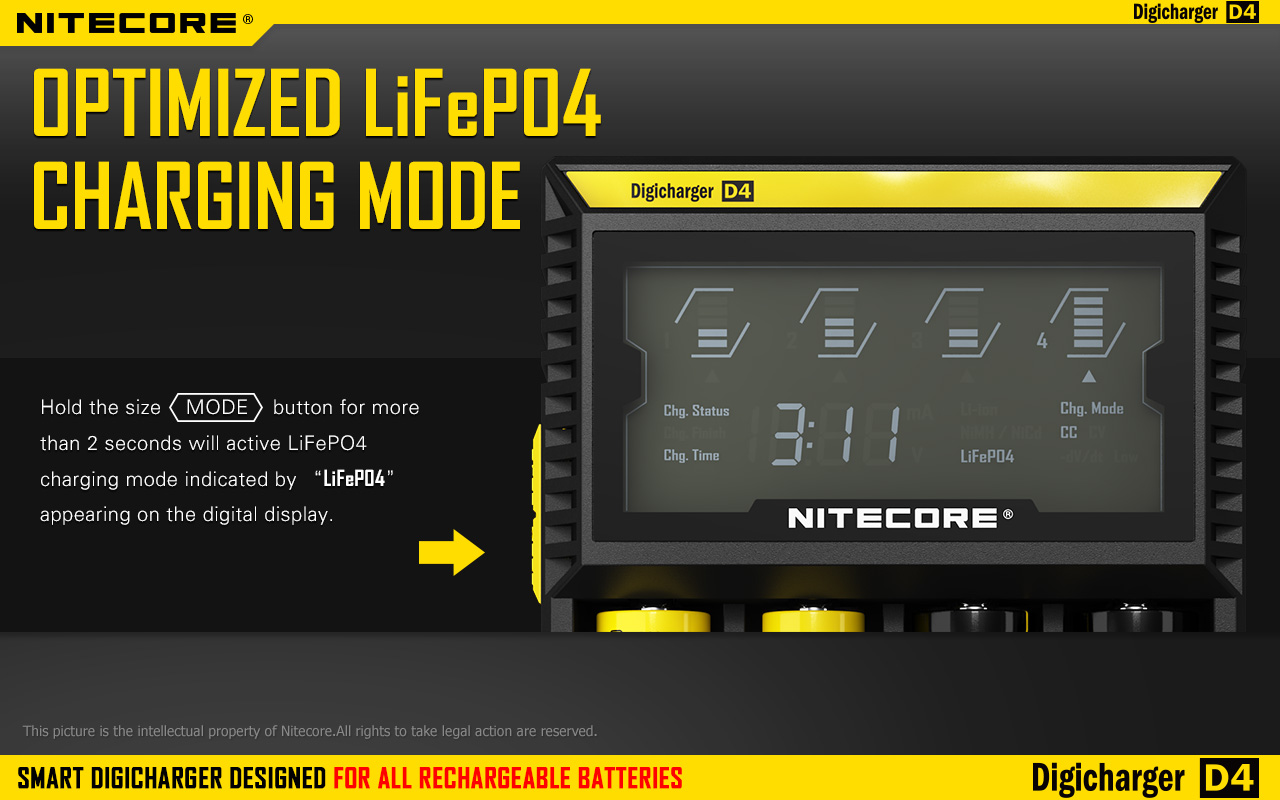

- Automatically detects battery power status and selects the appropriate voltage and charge mode (with the exception of LiFePO4 batteries which require manual selection)
- Compatible with LiFePO4 batteries
- Compatible with small capacity batteries

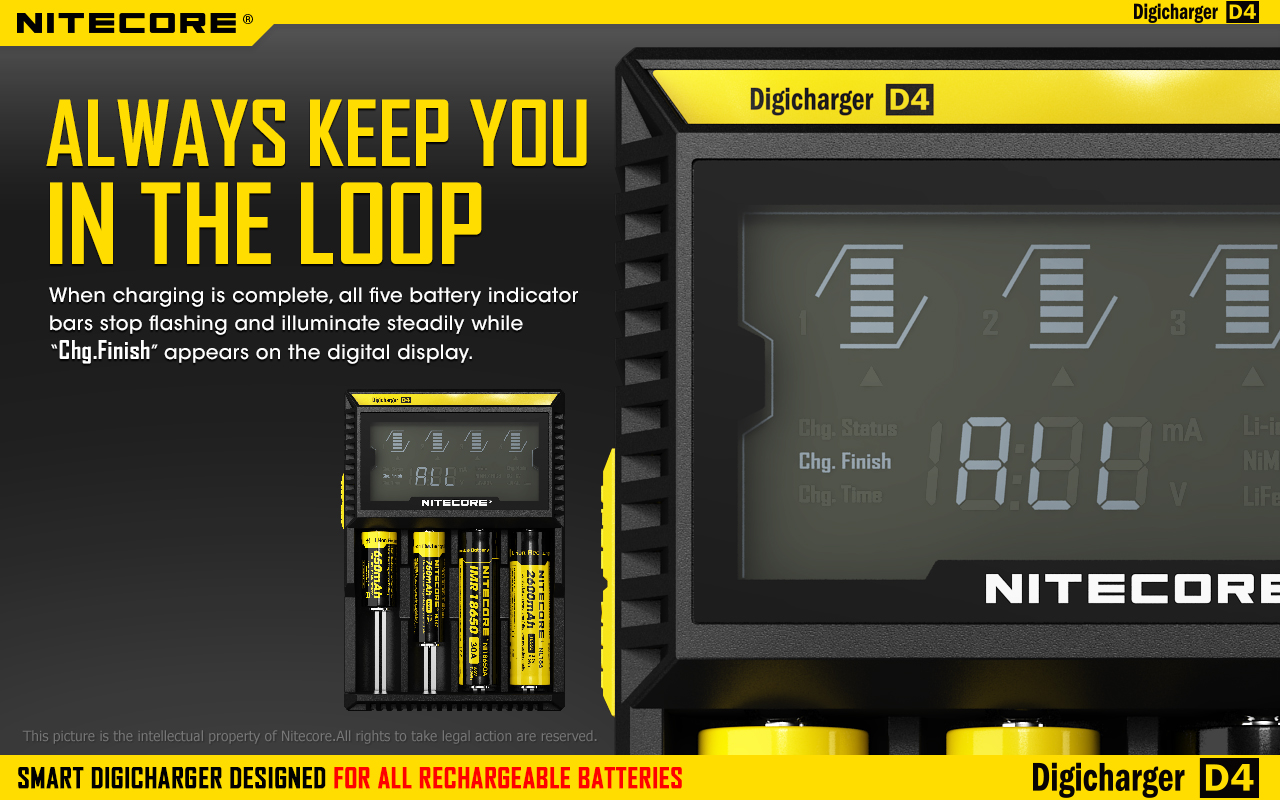

- Automatically stops charging when complete
- Features over-charge prevention to protect batteries

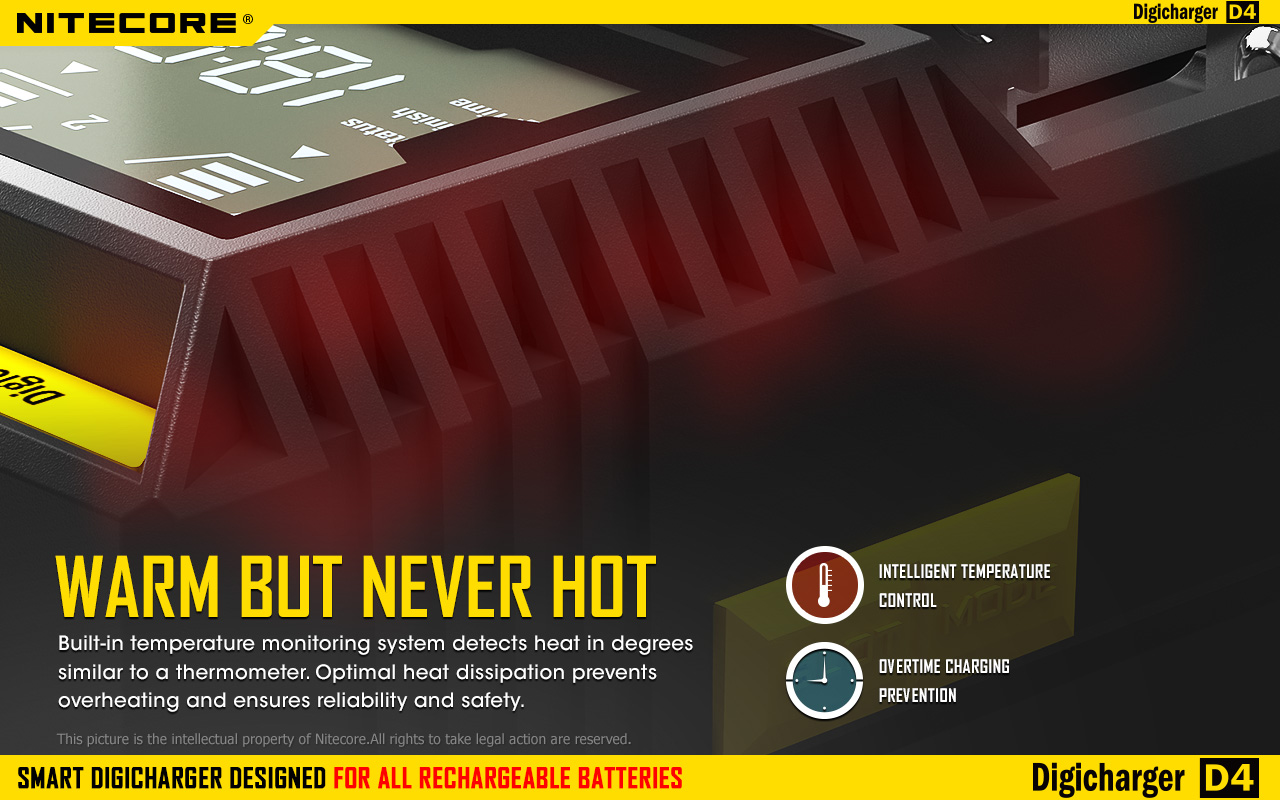

- Features temperature monitoring to prevent overheating
- Made from durable ABS (fire retardant / flame resistant)
- Features reverse polarity protection
- Designed for optimal heat dissipation

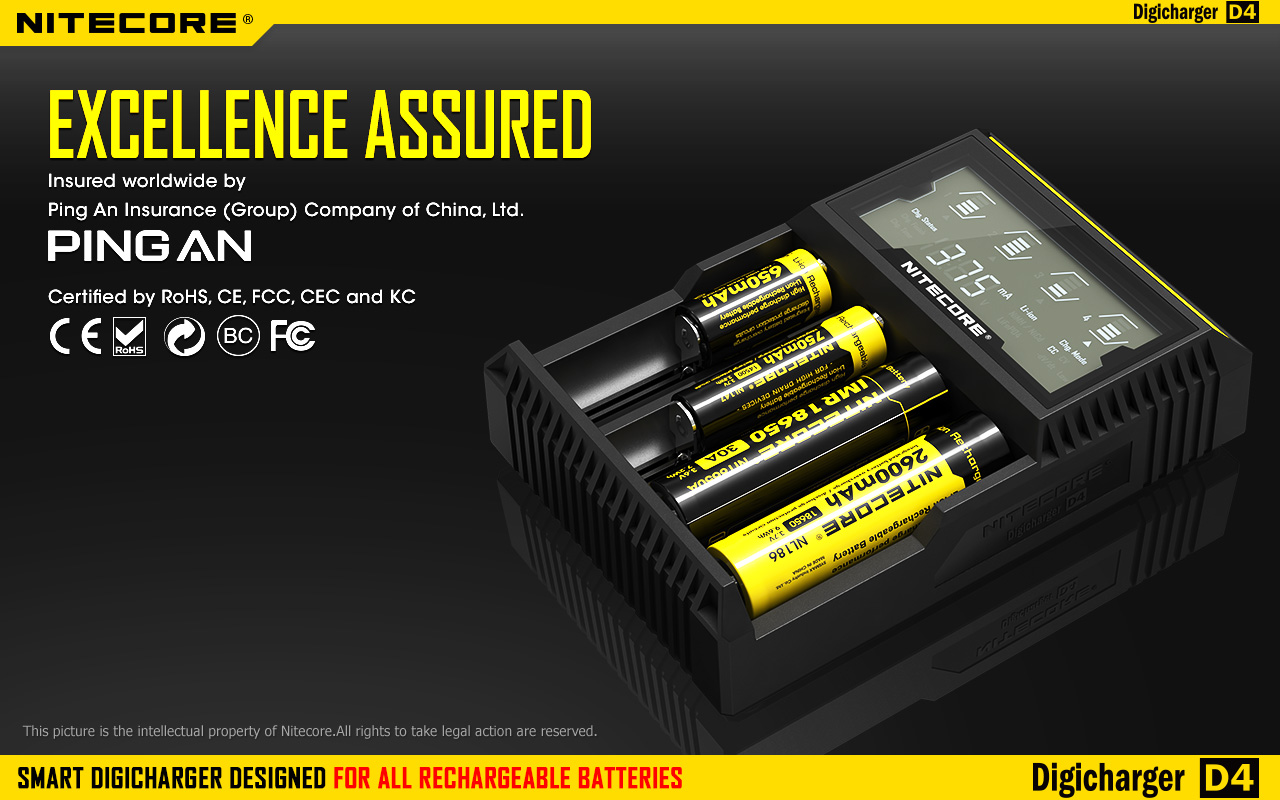

- Certified by RoHS, CE, FCC and CEC
- Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.
