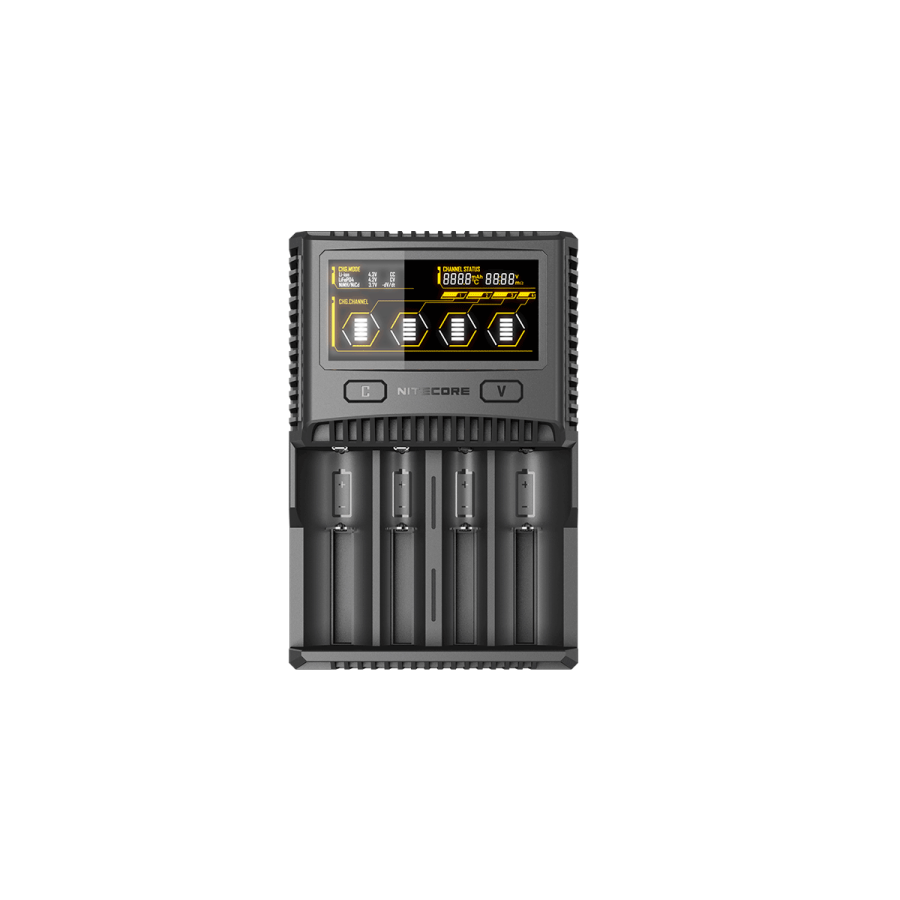

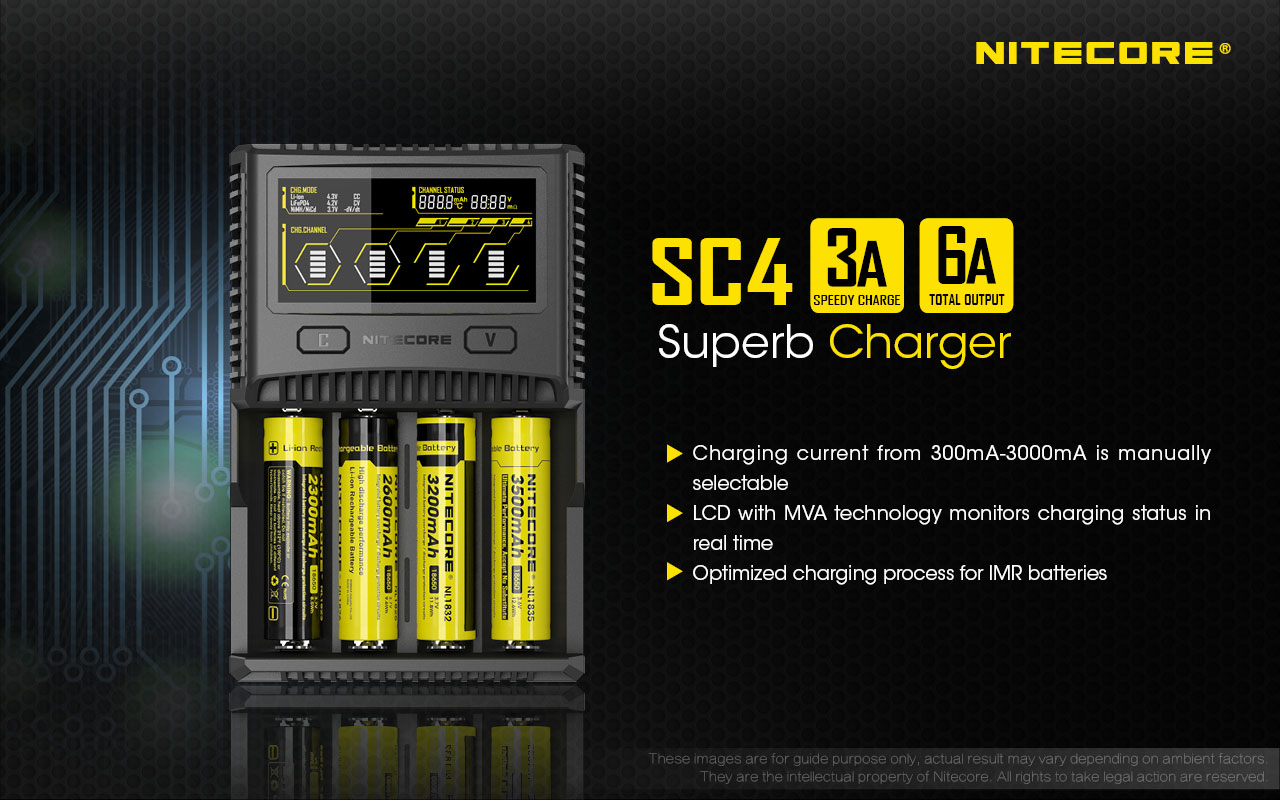

SC4
Superb Charger

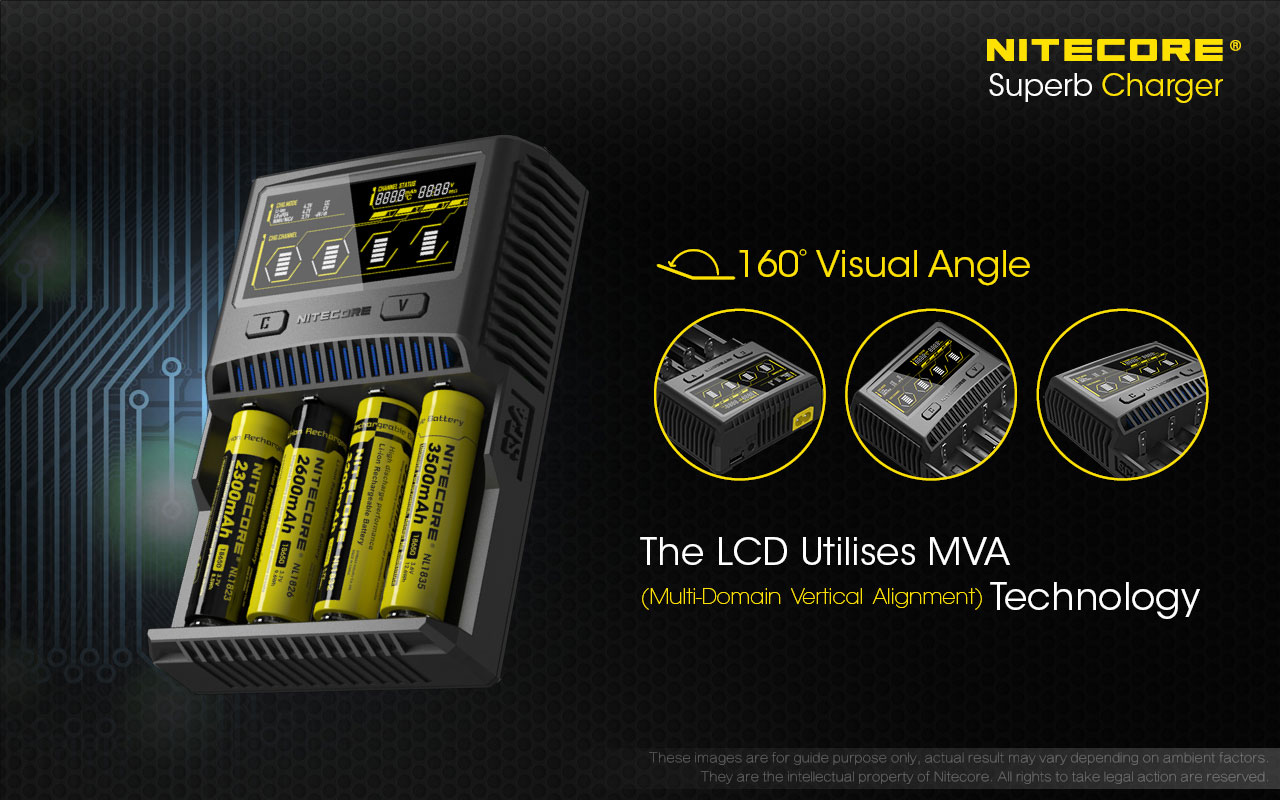

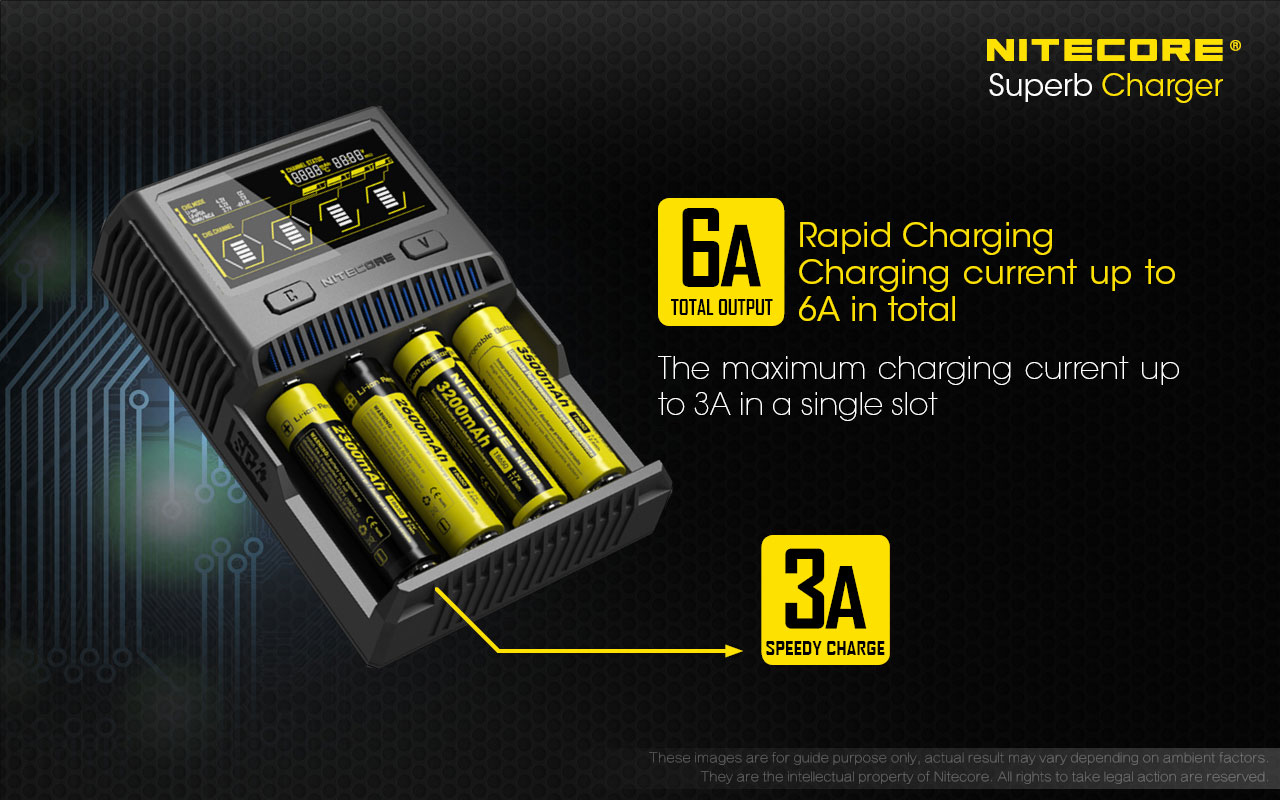

The charging current of SC4 Superb Charger is up to 6A in total and maximum charging current up to 3A in s single slot. Using LCD screen with MVA technology to display real-time information of charging status.
PRODUCT SPEC
Input
AC 100-240V 50/60Hz
1A（MAX) 40W
DC 12V 3A
Output Voltage
Battery: 4.35V±1% / 4.2V ±1% / 3.7V ±1% / 1.48V ±1%
USB: 5V±5% 2.1A MAX
Output Current
3A*2 MAX 1.5A*4
Compatible with
Li-ion/IMR/LiFePO4: 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 22500, 22650, 25500, 26500, 26650
Ni-MH(NiCd): AA, AAA, AAAA, C, D
Dimensions
6.50" x 4.33" x 1.77"
(165mm x 110mm x 45mm)
Weight
13.59 oz (385g)
(without batteries and power cord)

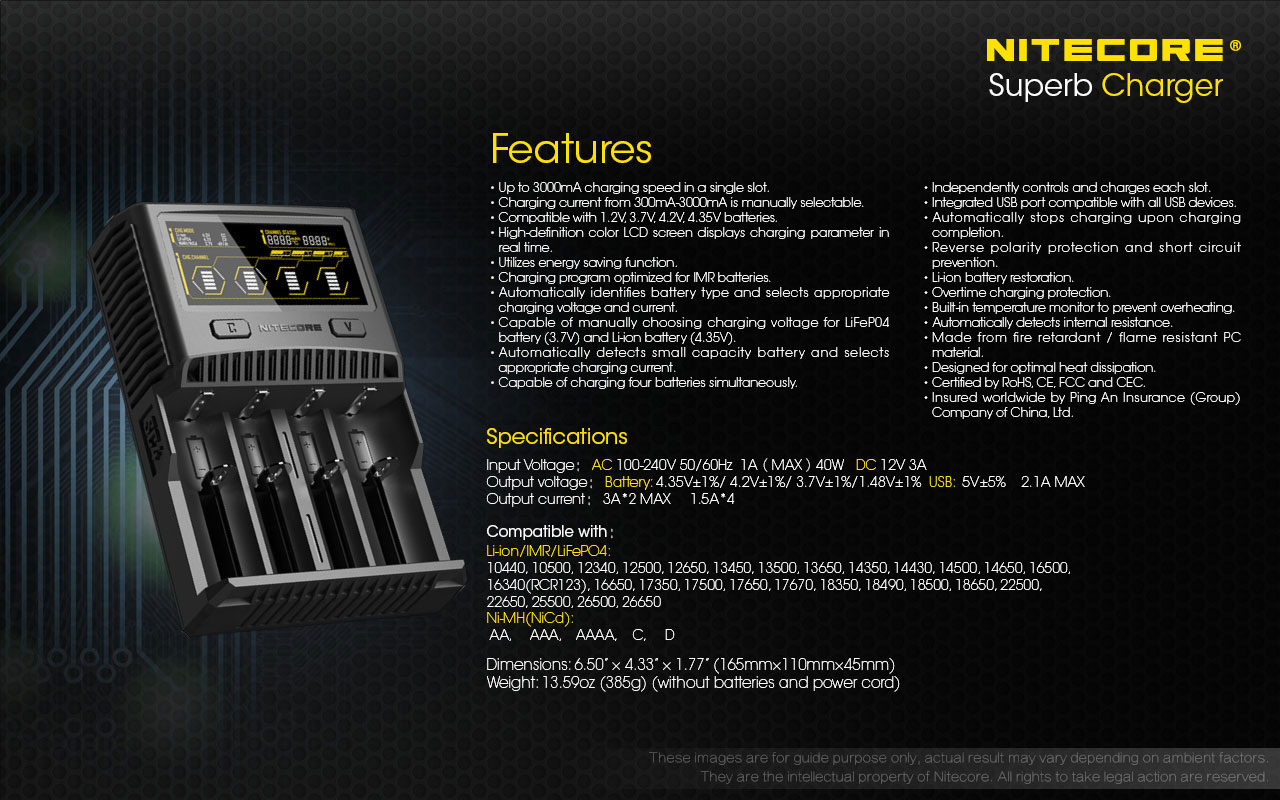

FEATURES
- Maximum charging speed up to 3000mA

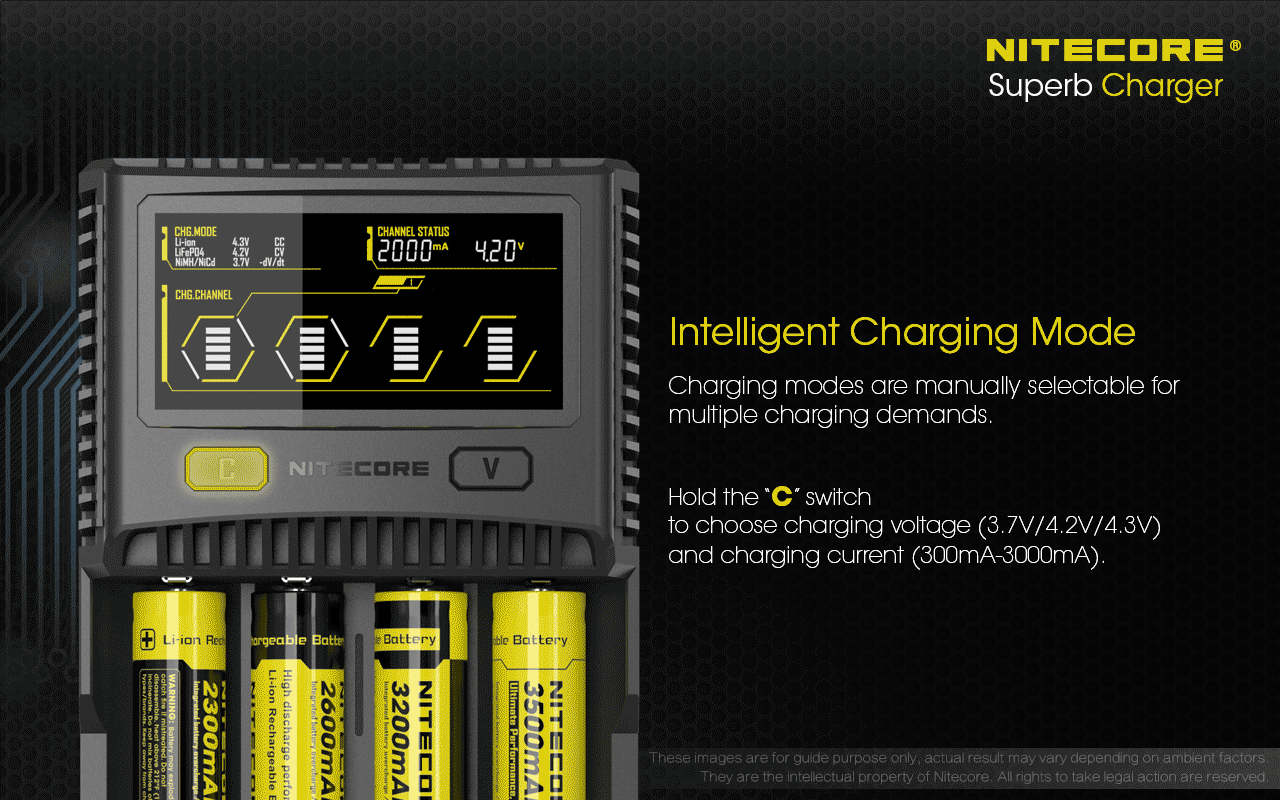

- Charging current from 300mA-3000mA is manually selectable
- Compatible with 1.2V, 3.7V, 4.2V, 4.35V batteries

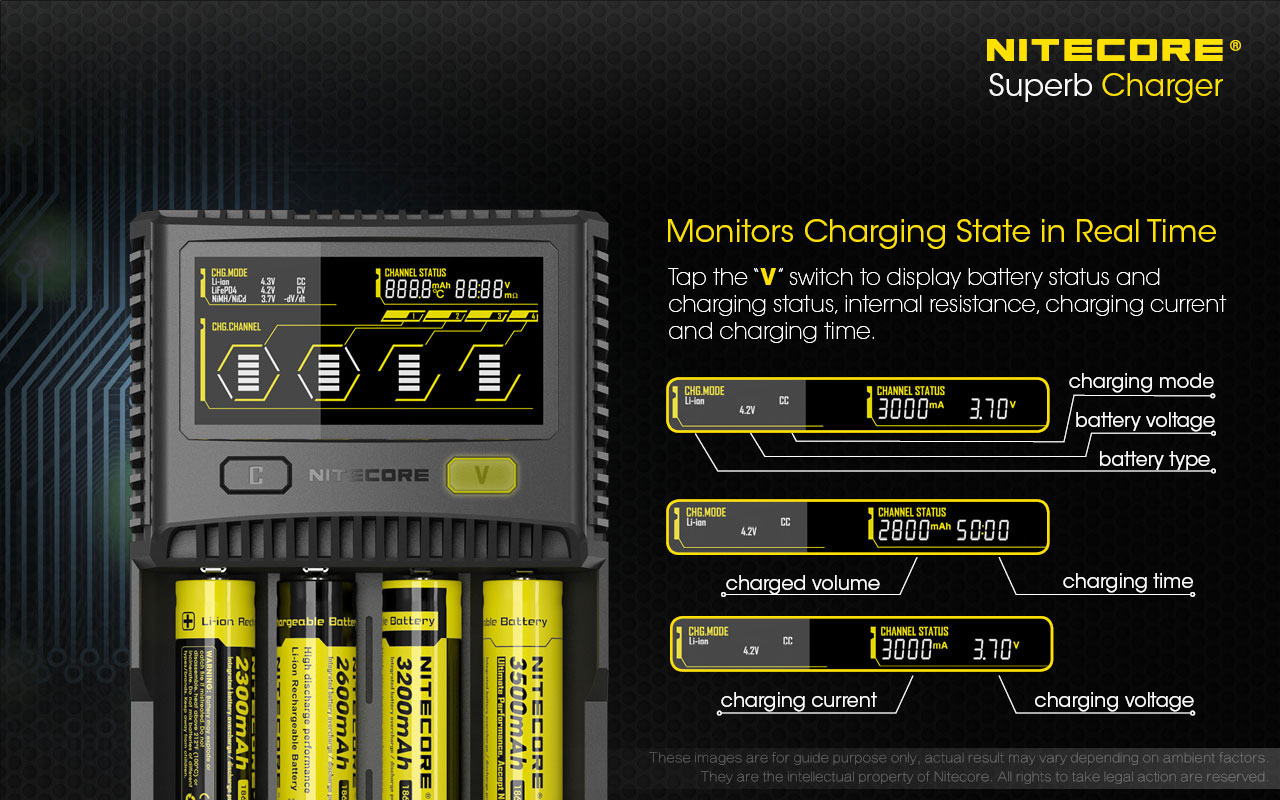

- High-definition color LCD screen displays charging parameter in real time

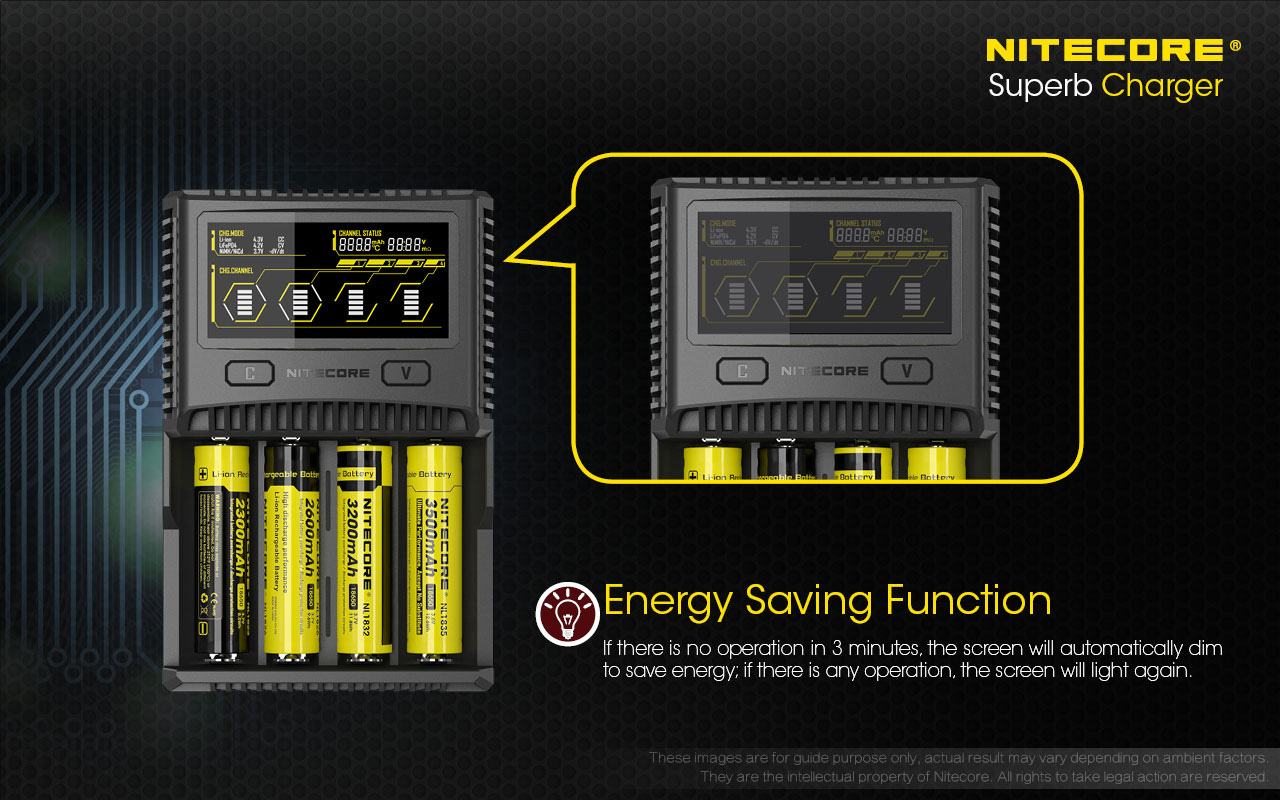

- Utilizes energy saving function

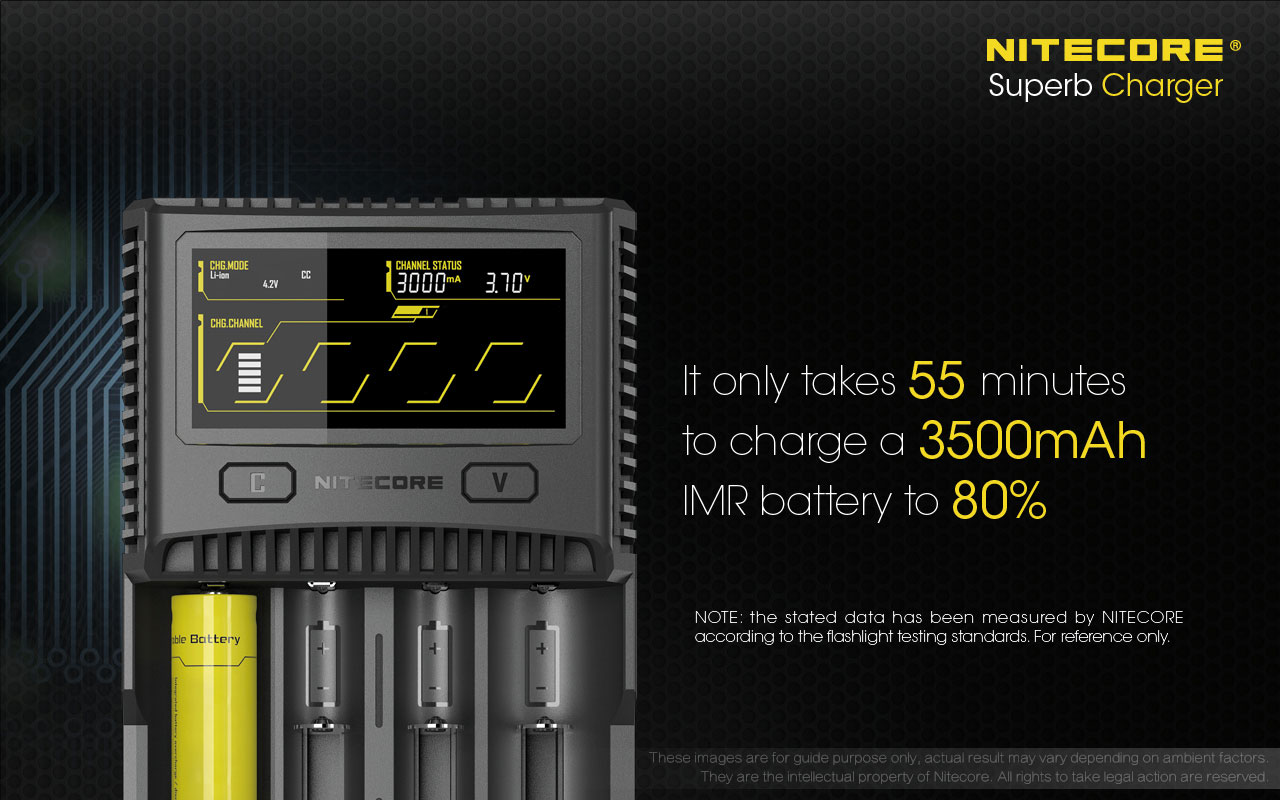

- Charging program optimized for IMR batteries

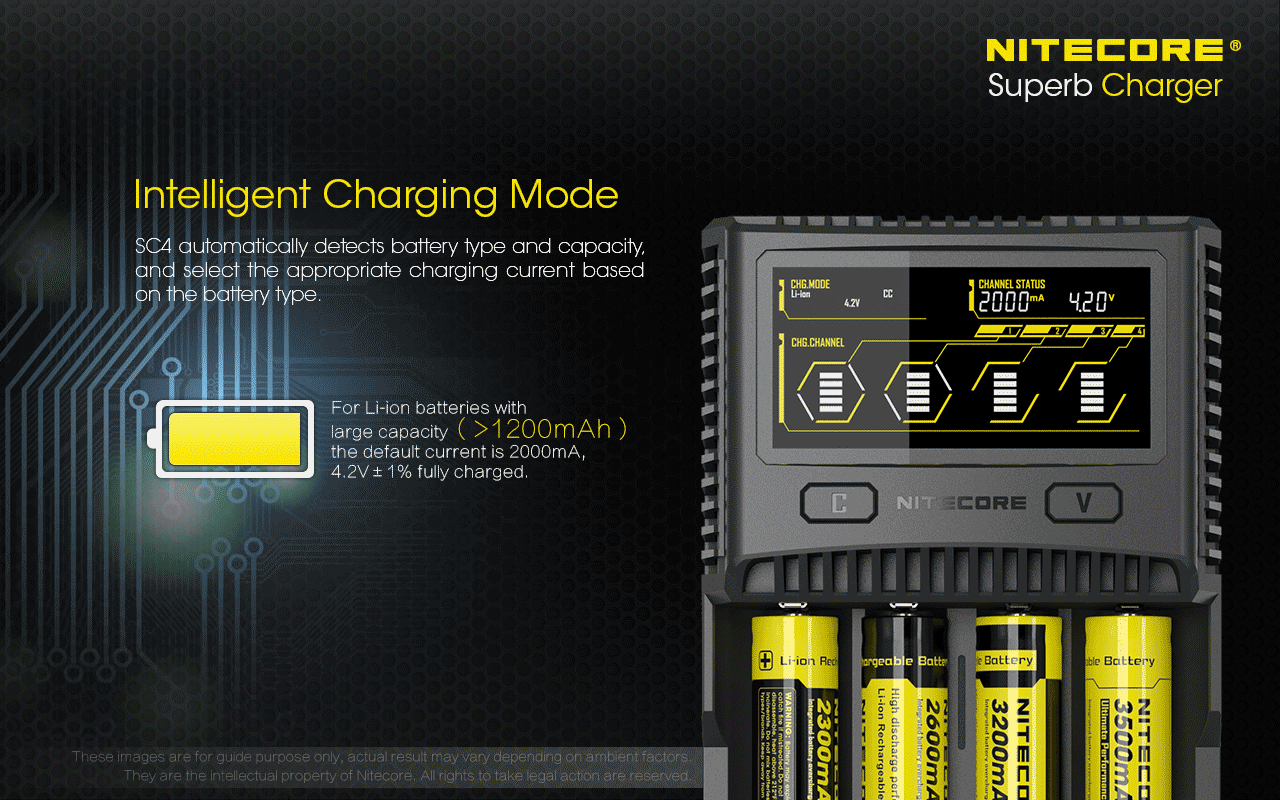

- Automatically identifies battery type and selects appropriate charging voltage and current.
- Capable of manually choosing charging voltage for LiFeP04 battery (3.7V) and Li-ion battery (4.35V).
- Automatically detects small capacity battery and selects appropriate charging current.
- Capable of charging four batteries simultaneously

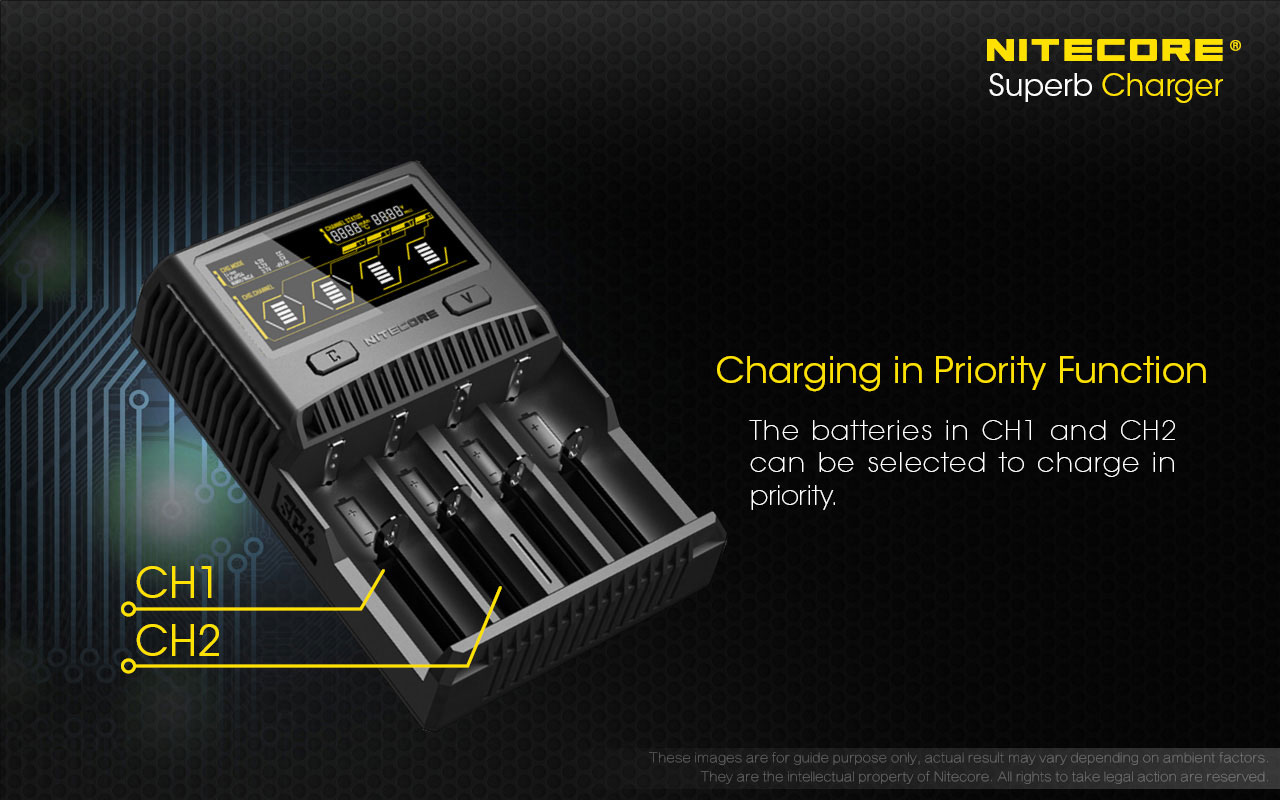

- Independently controls and charges each slot

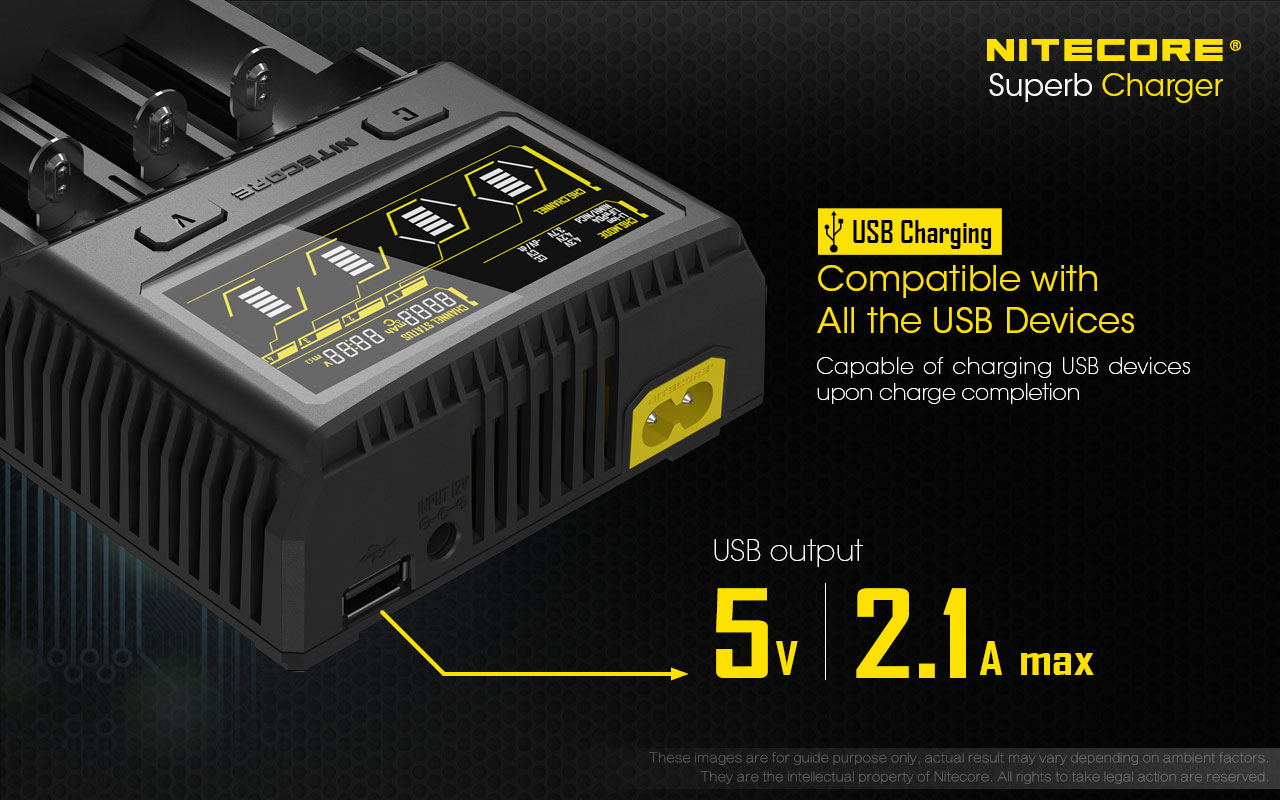

- Integrated USB port compatible with all USB devices
- Automatically stops charging upon charging completion

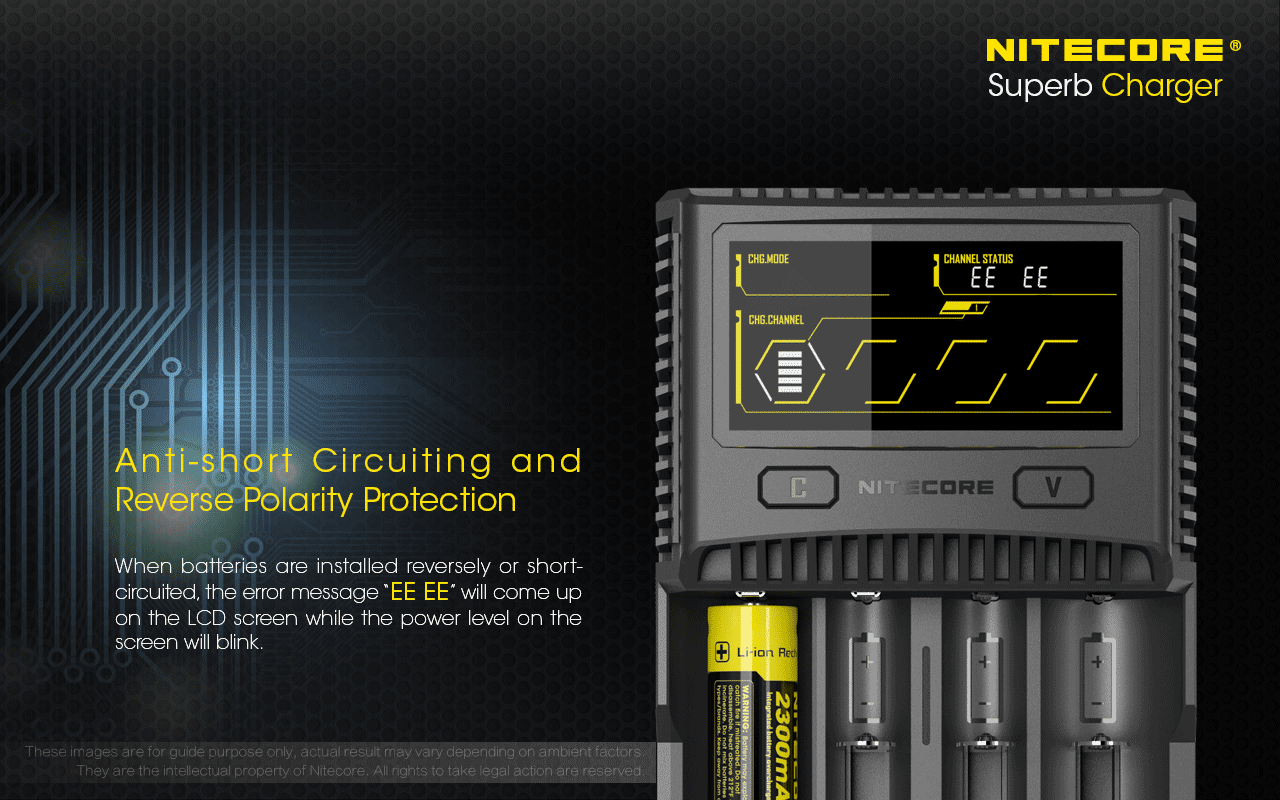

- Reverse polarity protection and short circuit prevention

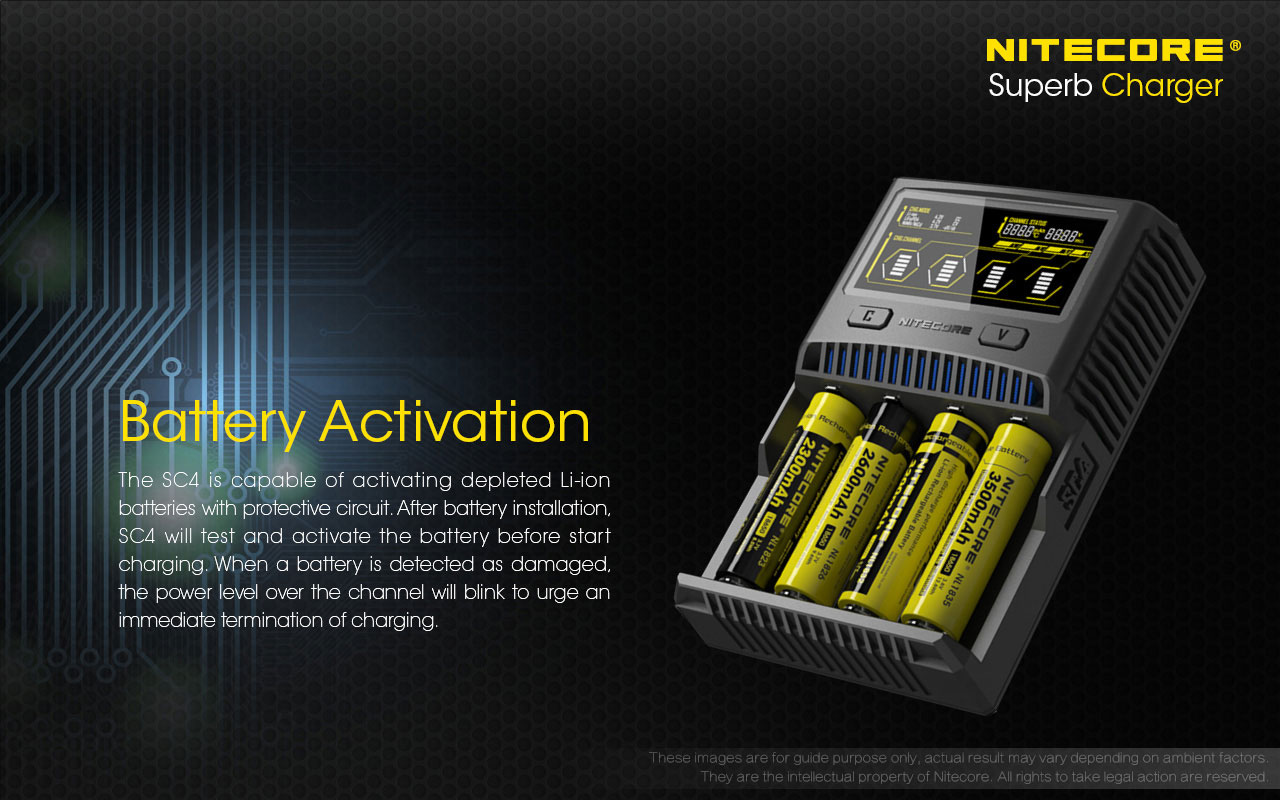

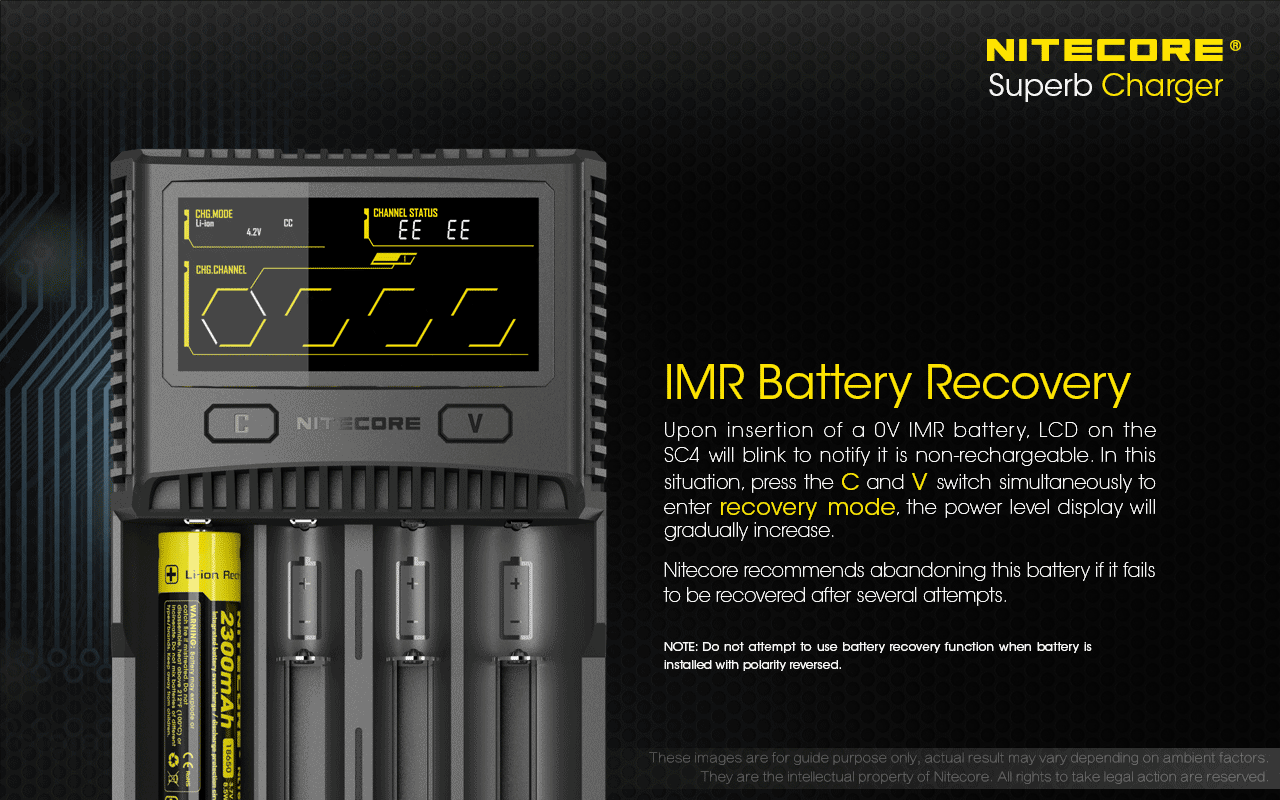

- Li-ion battery restoration
- Overtime charging protection
- Built-in temperature monitor to prevent overheating

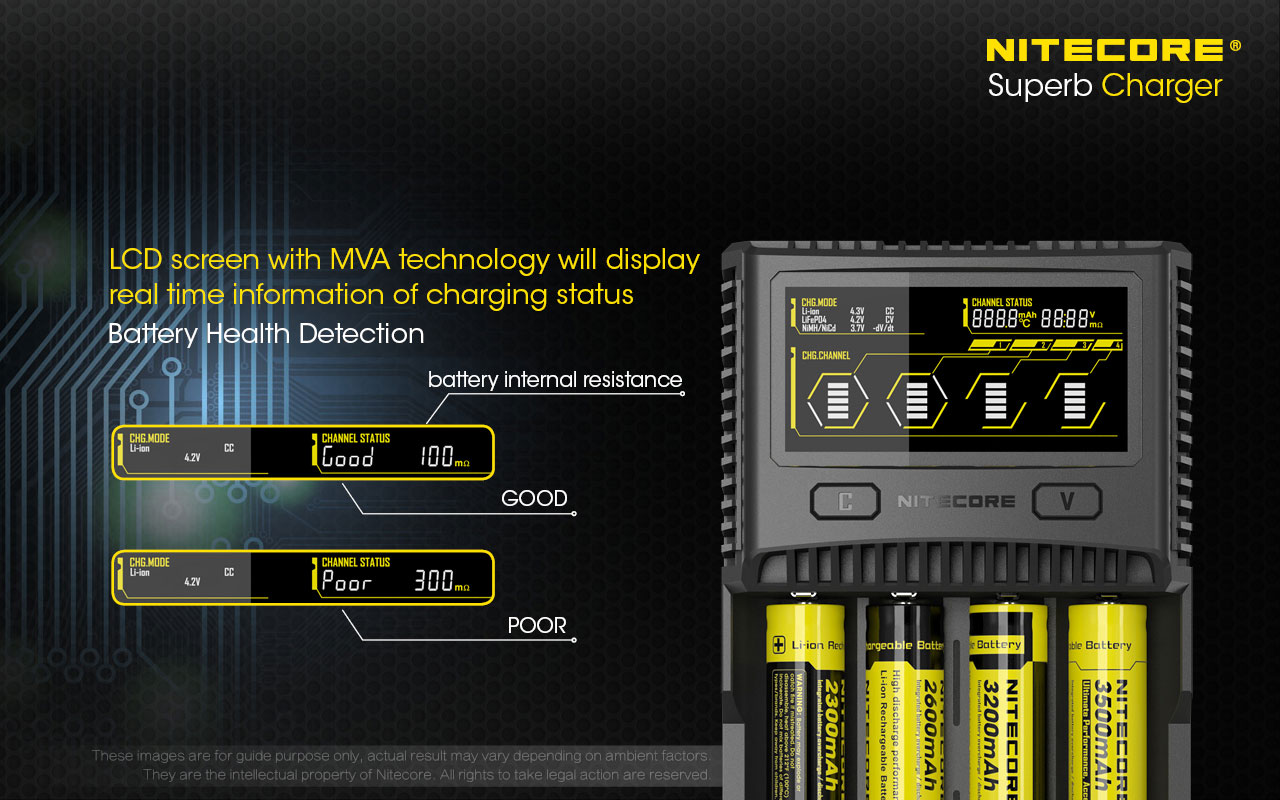

- Automatically detects internal resistance

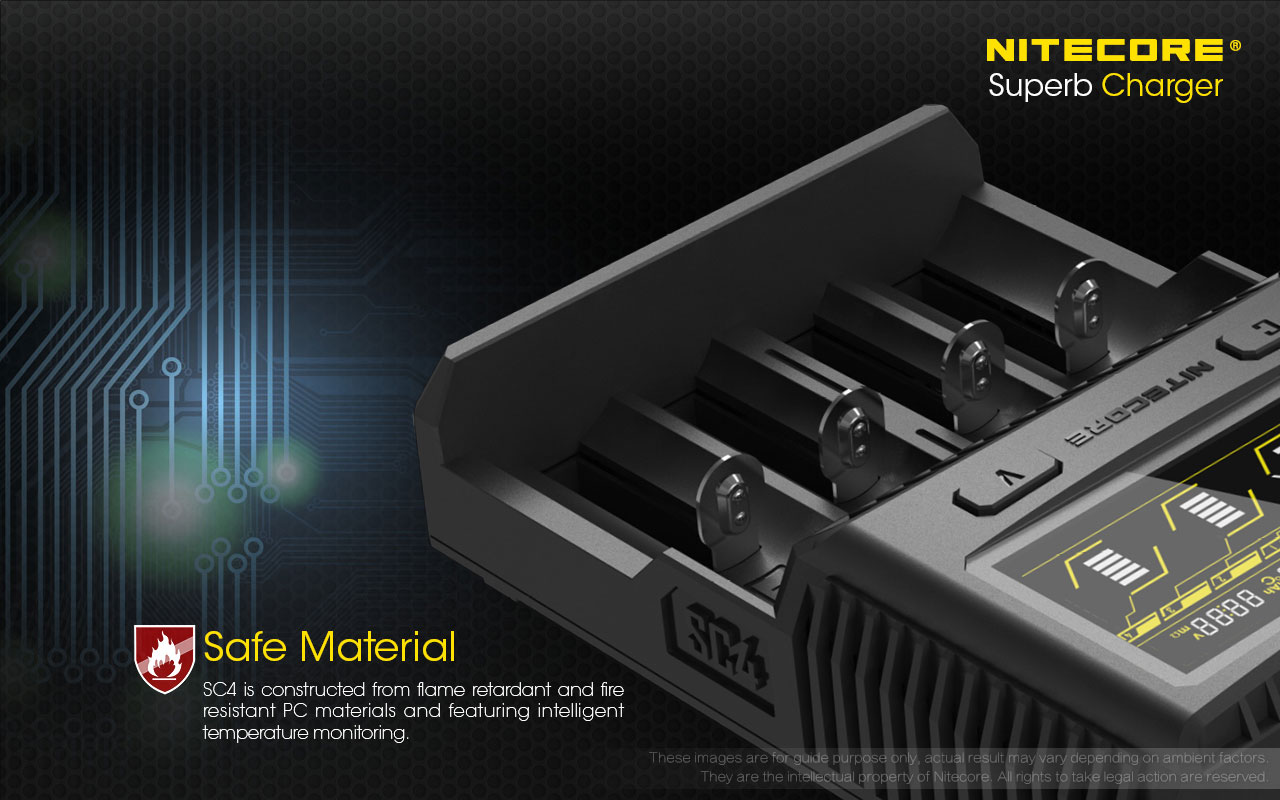

- Made from fire retardant / flame resistant PC material

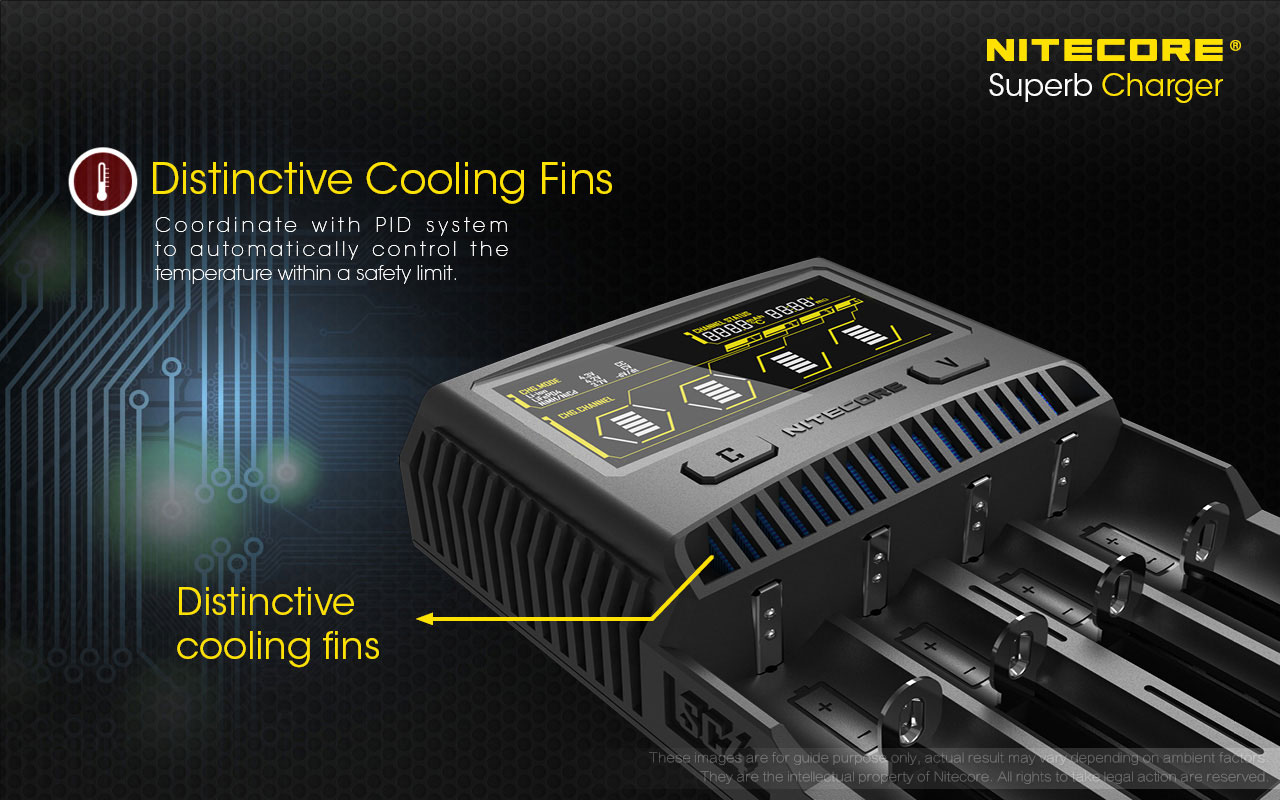

- Designed for optimal heat dissipation
- Certified by RoHS, CE, FCC and CEC
- Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.
